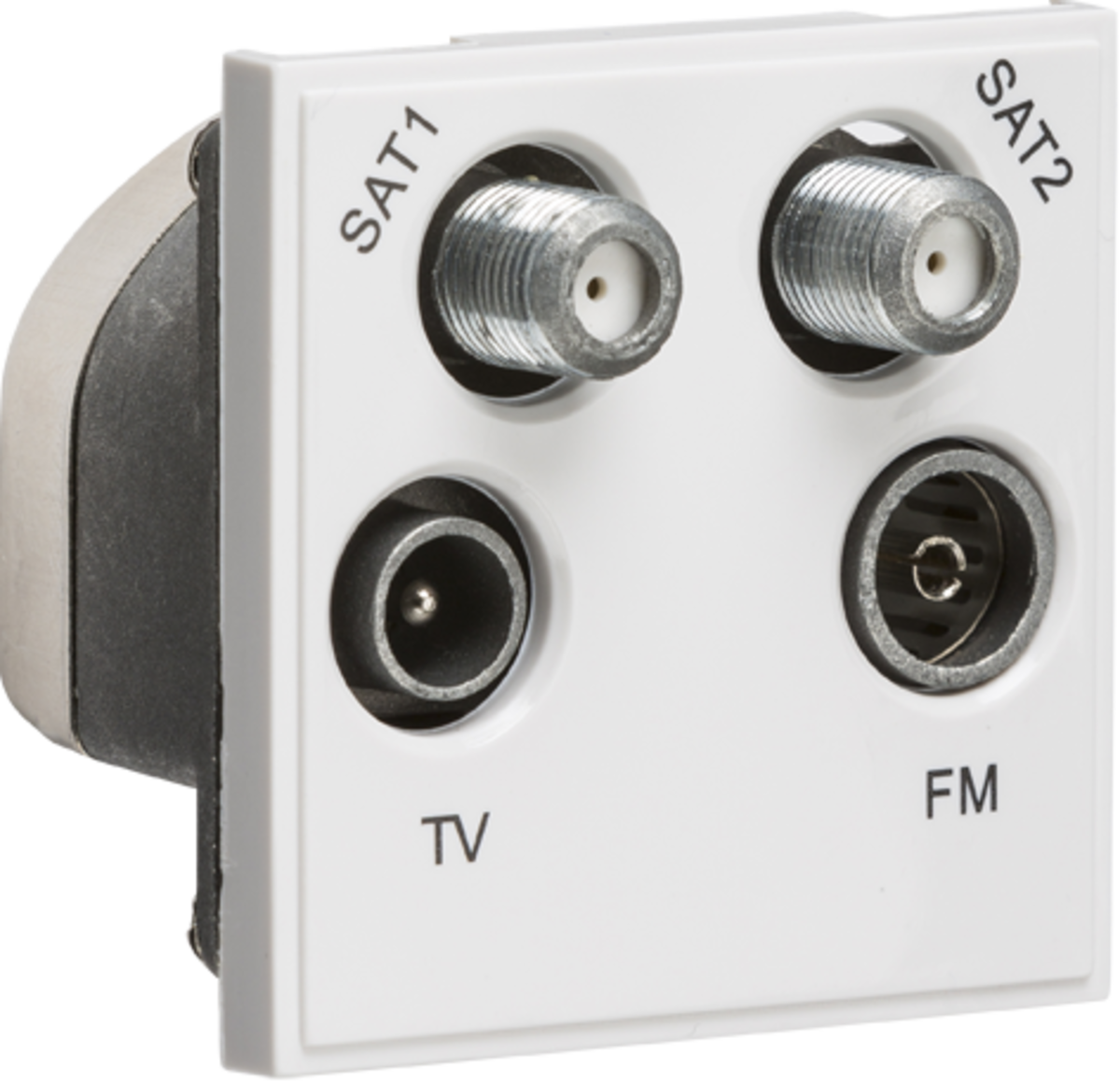

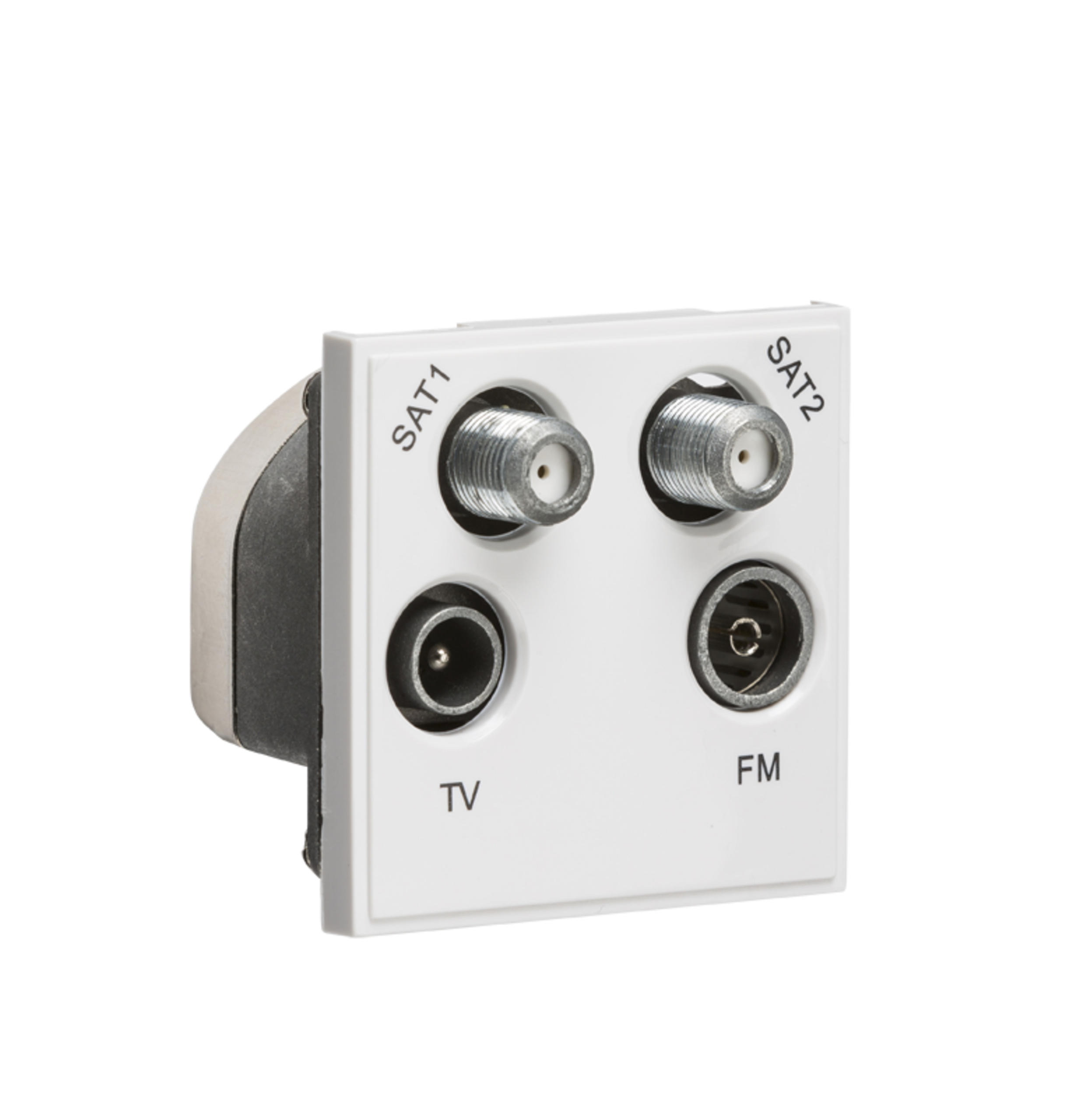

NETQDWH MODULAR QUADPLEXED SAT1/SAT2/TV/FM DAB OUTLET

Original price was: £7.15£8.58.Current price is: £5.45£6.54. Excl. VATIncl. VAT

Delivery

Collection

Fully screened Satellite, TV and FM/DAB aerial triplexed outlet with separate Sat 2 outlet. Ideal for Sky™ and Sky+™ applications with low loss, minimal ingress and negligible module cross talk with excellent matching and isolation.

Fully screened to EN 50083-2.
Easy cable connections and access.
Suitable for cables with 1mm conductor (PF100, H109F, QF100, etc.).
Min mounting depth 35mm.
Size: 50 x 50mm

Features

White quadplexed SAT1, SAT2, TV and FM DAB outlet module
Dimensions (H x W x R): 50 x 50 x 31mm
Minimum mounting depth: 35mm
Fully screened satellite, TV and FM DAB triplexed outlet with separate SAT2 outlet
Low loss, minimal ingress and negligible module cross talk
ABS construction
F-type SAT connection, female FM DAB connection and male TV connection
Clamp and screw terminal
IP20 rated
1 Year Warranty
