FUSEBOX SF0100 100AMP SP&N FUSED SWITCH C/W 63, 80 AND 100A gG FUSES

Original price was: £69.53£83.44.Current price is: £30.85£37.02. Excl. VATIncl. VAT

Delivery

Collection

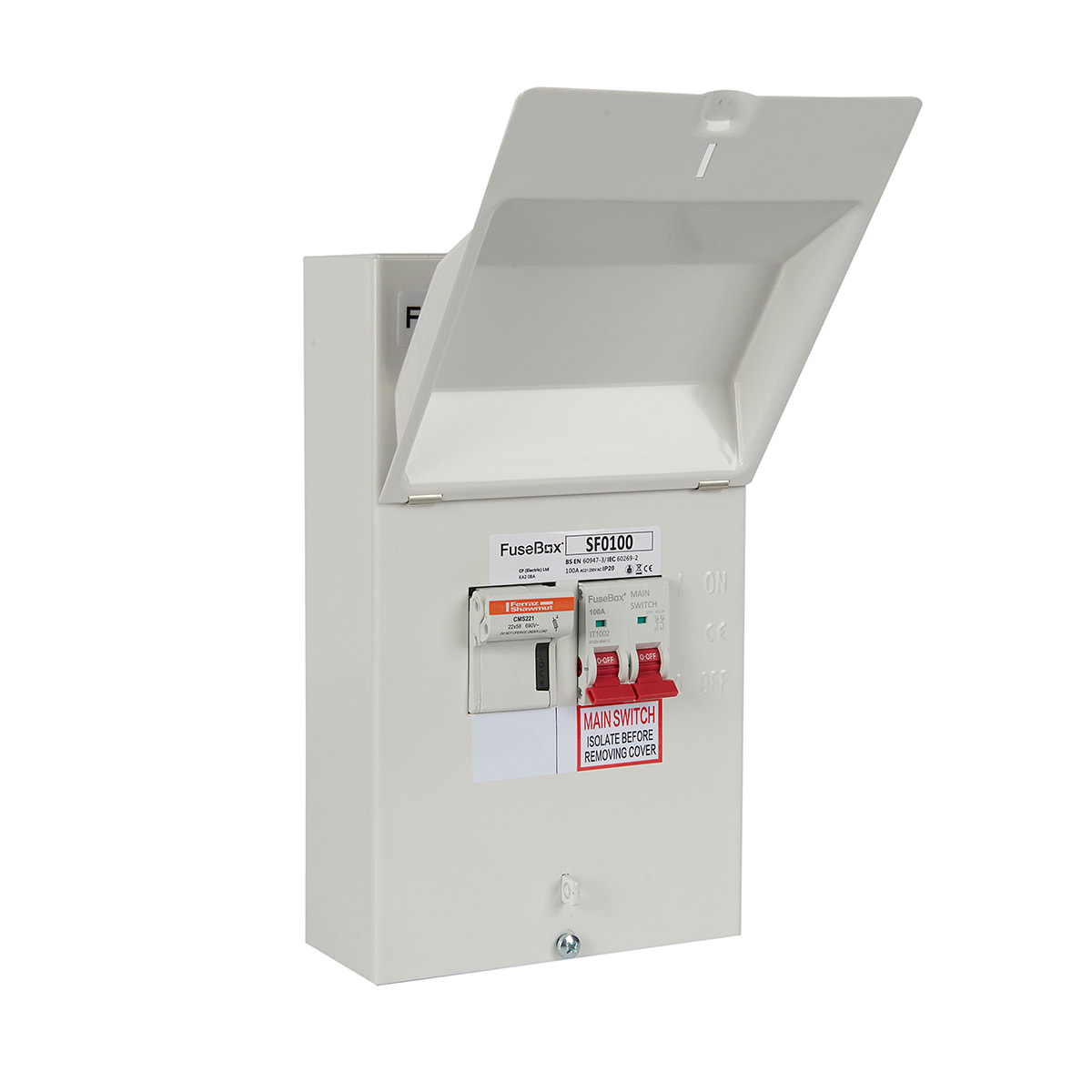

The FuseBox SF0100 is a 100A fused main switch isolator in a 1P+N format, supplied with 63A, 80A, and 100A gG fuses. Designed for DIN rail mounting, it supports 35mm² line/neutral connections and 16mm² earth. Constructed from 1mm electro-galvanised zinc steel with a RAL 9001 powder coat finish, the enclosure offers IP20 ingress protection, top and bottom 25/32mm knockouts, and an integrated padlock facility for secure disconnection.

Features

FuseBox SF0100 fused main switch isolator
Rated current: 100A AC21
Voltage: 230V AC / 50Hz
1P+N configuration (includes Line and Neutral switching)
Includes 63A, 80A, and 100A fuses (22 x 58mm gG cylinder)
Fuse holder and main switch rated for 35mm² cables
Earth terminals rated for 16mm²
DIN rail mountable
Material: 1mm electro-galvanised steel (zinc)
Knockouts: 1 x 25mm + 1 x 32mm (top and bottom conduit entry)
Tail clamp included (max 25mm²)
Padlock facility included for safe isolation
Protection rating: IP20 – indoor use only
Standards: EN 61439-3, EN 60947-3, IEC 60269-2
Colour / Finish White
Dimensions (H x W x D) 260 x 156 x 94 mm
